Which PanelView in the USA is most suited to your applicatio

by Nathan Zachary

Rockwell Automation offers a wide variety of Allen-Bradley PanelViews in the USA. As a result, it is not always easy for new clients to determine which of these PanelViews is best suite to meet the requirements of their particular application.

In light of this,this article provides a comprehensive overview of all of Rockwell’s PanelViews in the hopes of making things a bit more transparent.

 PanelView models in the USA that are out of date:

Let’s begin with the PanelView in the USA that you really shouldn’t be planning to use. The original PanelView, which was later rename the PanelView 1200.

The PanelView “E” or Enhanced series (1000E, 1200E, and 1400E), and the PanelView Standard series (300, 550, 600, 900, 1000, and 1400) are all no longer in production.

It is also no longer possible to use the original PanelView Plus software, as well as PanelView Plus CE and VersaView CE. And finally, it was just just state that the PanelView Component 4″, 6″, and 10″ will be “end of life” in 2016, making them practically useless.

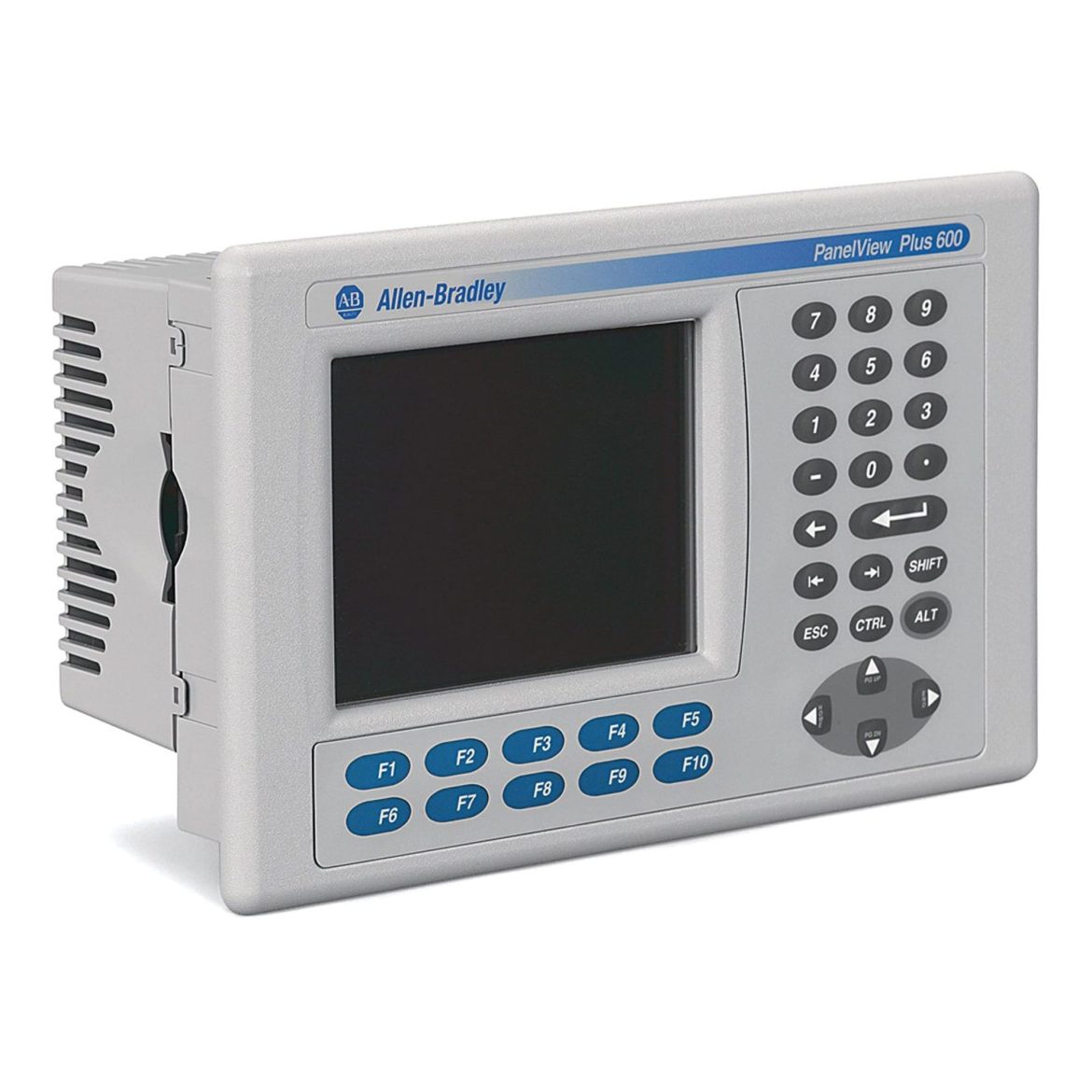

Comparison between the PanelView Plus 6 and the PanelView Plus 6 Compact:

Despite the fact that the PanelView Plus 6 Compact is available at a significantly reduce price, it is constrain in the following ways:

  • It is only capable of communicating with a single PLC or device.
  • Only Serial or Ethernet connections are support for that device.
  • There is a limit of 25 graphic displays that can be include in the project.
  • It is only possible to have a total of 200 alarms in the project. It is only available in five different models, all of which are power by DC current.
  • In light of the aforemention considerations, the PanelView Plus 6 Compact is most frequently use on compact systems that are manage by a single CompactLogix processor.

 PanelView in the USA, ideal for use in New Applications:

There are in fact two different options available here.

To begin, if you are currently working with a MicroLogix or Micro800, the PanelView 800 is your best option in terms of cost.Having said that, the totally free and extremely easy-to-use CCW programming software isn’t suitable for everybody.

However, if you are working with a Micro and are interest in a straightforward HMI that comes with free programming software, then the PanelView 800 is most likely the most suitable option for you.

 PanelView Plus 7 Performance Analysis

On the other hand, if you’re working with CompactLogix or ControlLogix on Ethernet and you enjoy the power and efficiency of FactoryTalk View Studio, then the PanelView Plus 7 might be the right choice for you. Making it one of the most efficient PanelView in the USA.

In many respects, the PanelView Plus 7 is distinct from its predecessor, the PanelView Plus 6.

To begin, all of the PanelView Plus 7 models can only communicate through Ethernet, which is one of the primary reasons why you will find that they are not as popular in migration circumstances as other models.

In addition to this, they feature more recent display technology, and some of them even come in all new widescreen formats. As a consequence of this, they also feature distinctive cutout dimensions, which do not correspond to those of prior PanelView models.

PanelView Plus 7 Standard

To make things straightforward, let me just say that when you hear the term “PanelView Plus 7 Standard,” you should be aware that it has virtually the same restrictions as the PanelView Plus 6 Compact:

  • It is only capable of communicating with a single PLC or device.
  • In the project, we are only allow to have a maximum of 25 graphic displays, and we are only allow to have a maximum of 200 alarms.
  • Initially, there were just five different versions available, and they are all powered by DC.

Rockwell offers a total of seven different PanelView Plus 7 Standard models. Rockwell is certainly hard at work on its next generation of industrial human machine interfaces (HMIs). The PanelView in the USA has been around for more than a decade. We at Greenway Enterprise have a variety of panelview. Feel free to reach out to us or visit the website for more information.
